How Modern Payment Systems Scale to Handle Millions of Transactions

Payment scale requires more than capacity

Scale in payments is peak throughput and tail latency held at once. Miss any one of them and the others stop mattering. A system that clears 10,000 authorizations per second but posts a duplicate ledger entry during failover has not scaled, it has just failed faster.

VisaNet is the reference point most architecture reviews reach for. The network is engineered for a peak of roughly 65,000 transaction messages per second with sub-two-second average authorization response, and it runs at a claimed six-nines availability. The interesting part is the ratio. Average production throughput sits far below that ceiling, which means Visa provisions for a peak it hits a handful of times a year.

That ratio is your real design target. If your architecture only survives at average load, every seasonal spike becomes an incident. Size the system against the worst hour you expect to see.

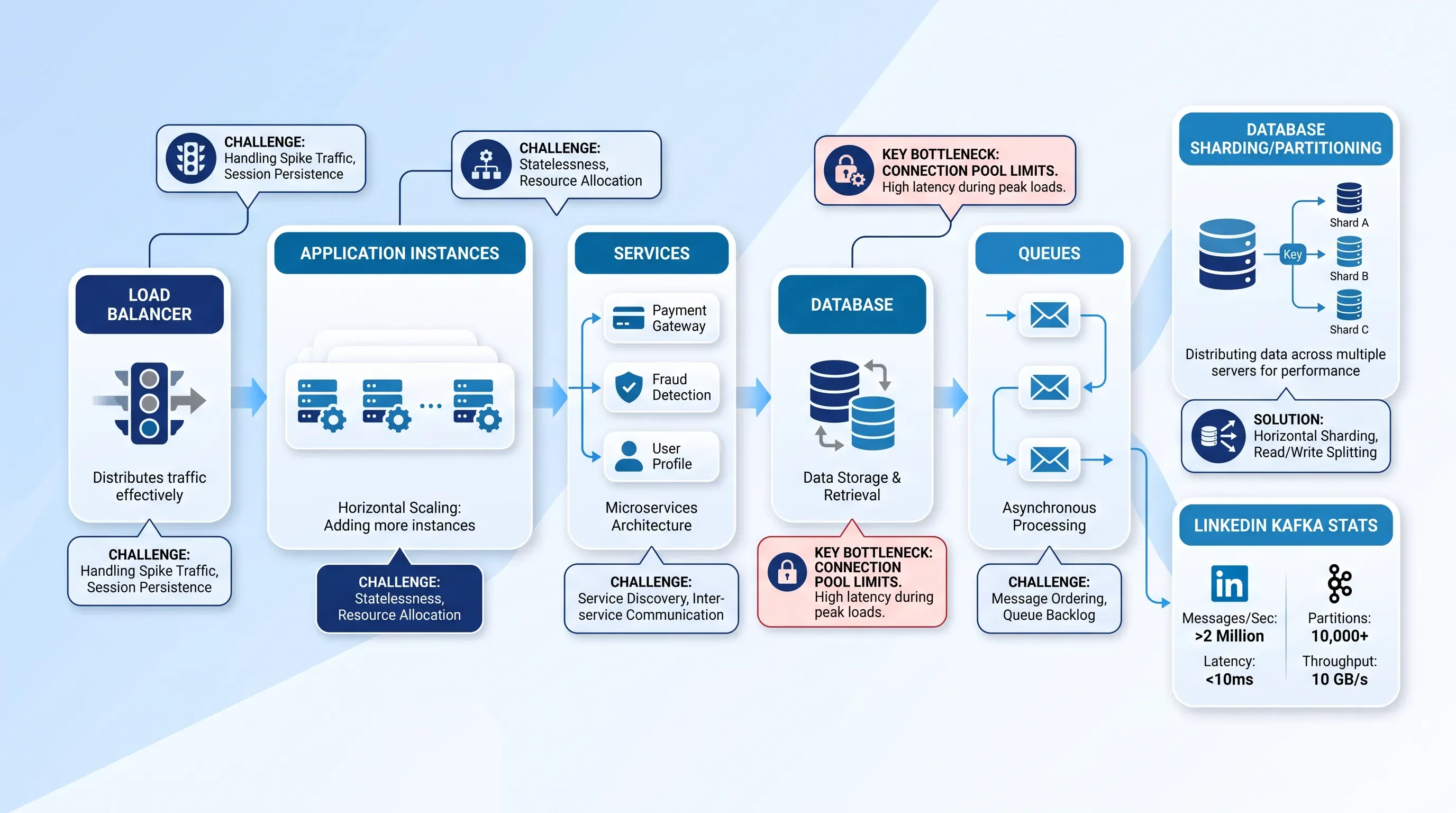

Horizontal scaling distributes transaction workloads

Horizontal scaling means adding more service instances rather than bigger ones, and it works because payment traffic decomposes into independent requests that any instance can handle. Add nodes, throughput rises. Lose a node, the load balancer routes around it and the remaining fleet absorbs the traffic.

The ceiling shows up somewhere else. Your database and your external payment providers do not scale because you added application containers. Guidance from API7 on scaling high-traffic APIs puts it plainly: no amount of infrastructure fixes a stateful, monolithic design, and the database stays the bottleneck until you treat it separately with replicas and caching.

There's a practical consequence teams discover late. Once your application tier scales freely, connection pool exhaustion at the database becomes the first thing to break under load, because every new instance opens its own pool. Cap connections per instance and put a pooler in front before you turn autoscaling loose.

Stateless services scale most easily

Stateless services scale easily because any instance can serve any request, so the load balancer needs no routing logic beyond a health check. Application programming interface (API) gateways and transaction routing fit this shape when they hold nothing in local memory between calls.

Session state is what breaks the model. If an instance remembers a client, every later request from that client has to return to that same box, which makes adding or removing instances disruptive. The standard fix is externalizing state to a shared store. DoiT's guidance on horizontal scaling recommends Redis or Memcached as distributed session storage, which trades one network round-trip per read for real elasticity.

For payment routing specifically, statelessness buys you something extra. Deployment becomes boring. You can roll a new routing rule across the fleet instance by instance during business hours, because no in-flight session dies when a container is replaced.

Data layers need separate strategies

Data layers need their own scaling plan because the write path in payments carries correctness guarantees that the application tier does not. Partitioning splits data across shards by a key like account or merchant. Read replicas absorb query load. Caching serves hot reads. Each solves a different bottleneck.

The choice of shard key decides whether you succeed. Partitioning a payments platform by naive value ranges leads to reconciliation gaps and broken ledger invariants, because financial events demand strict consistency and traceability that a generic web-workload shard key never accounts for. Pick a key that keeps every entry of a single transaction inside one shard.

Then split your workloads by consistency requirement. Balances and ledger writes need strong consistency without exception. Reporting dashboards and monthly statements tolerate replica lag measured in seconds, and pushing them onto eventually consistent reads takes real pressure off the primary.

Queues absorb sudden payment spikes

Queues absorb spikes by decoupling the rate at which requests arrive from the rate at which your workers process them. The authorization path answers the customer synchronously. Everything else, receipts and webhooks, drops onto a stream and gets consumed at whatever pace the downstream systems allow.

The scale these logs handle is not the constraint. LinkedIn's Kafka deployment reached 7 trillion messages per day across more than 100 clusters and 4,000 brokers by 2019, with a documented peak of 4.5 million messages per second in earlier configurations. Your payment volume is nowhere near that ceiling.

What queues buy you is failure isolation. When a notification provider degrades, the messages pile up in a partition instead of holding open threads in your authorization service. The spike becomes a backlog you drain later rather than an outage your customers see at checkout.

Microservices isolate scale and failures

Microservices let you scale and fail one function at a time. Authorization and ledger each have different traffic shapes and different latency budgets, so binding them into one deployable forces you to scale the whole thing for the busiest component.

Monzo runs this pattern at genuine depth. Senior engineers Matt Heath and Suhail Patel told QCon London the bank operates its systems on 1,600 microservices written in Go, because they favor many small single-purpose services over fewer complex ones. Patel's reasoning was about blast radius: changing how contactless payments work shouldn't touch the chip and PIN system.

The cost is real and you should price it in. Every service boundary you draw becomes a network call that can time out, and a transaction spanning four services needs saga patterns or compensating actions instead of a database rollback. Draw boundaries where the failure isolation is worth that price.

Multi-region deployment supports global growth

Multi-region deployment puts processing near your customers and keeps a second region ready when the first one fails. Both benefits depend on how traffic is routed and which region owns which records.

October 2025 made the second benefit concrete. A Domain Name System (DNS) race condition in DynamoDB's management system took down AWS us-east-1 for over 15 hours. The outage cascaded through more than 140 services and disrupted Slack and Snapchat. Recovery ran sequentially because each phase depended on the previous one finishing.

Read that timeline as a warning about hidden dependencies rather than about AWS. Plenty of teams with multi-region compute discovered their control plane or secrets manager lived in a single region. Treat the region as a failure domain and audit every dependency your payment path touches, which includes the tools you'd need to diagnose the outage.

Active-passive prioritizes simpler recovery

Active-passive keeps one region serving all traffic while a standby region waits with replicated data. Coordination stays simple because there's only one writer, which means no conflict resolution and a ledger with a single unambiguous ordering of events.

You pay for that simplicity in recovery time. Failover isn't instant, and whatever hasn't replicated when the primary dies is lost. A documented multi-region disaster recovery setup using health-check-driven failover reported an RTO of 2 to 5 minutes with recovery point objective under 30 seconds, because it avoided DNS propagation delays through network-based routing.

Thirty seconds of lost writes is a set of authorizations that exist at the card network and not in your ledger, which lands on your reconciliation team as exceptions the next morning. Active-passive is defensible, but only if you've built the reconciliation process that catches what replication dropped.

Active-active prioritizes continuous availability

Active-active runs live traffic in multiple regions at once, so a regional failure removes capacity instead of removing service. Customers hit the nearest region and there's no failover event to execute because the other regions are already serving.

Conflict prevention is where this gets hard. Aerospike's comparison of the two models notes that active-active setups must handle split-brain scenarios, where isolated regions keep accepting writes during a partition and produce divergent data requiring reconciliation. In a ledger, divergence means two versions of a balance.

The design move that makes active-active workable in payments is avoiding the conflict rather than resolving it. Assign each account or merchant a home region that owns its writes, and route those writes there regardless of where the request arrived. You keep multi-region availability for reads and traffic distribution while every balance still has exactly one authoritative writer.

Global scale creates three hard tradeoffs

Latency and consistency are one problem, and tuning either of them moves the other. Strong consistency across regions costs latency on every write. Fast failover risks duplicate processing. Low latency pushes you toward local writes that weaken your consistency guarantees.

The PACELC theorem names this directly. It extends the CAP theorem by stating that when a partition happens you choose between availability and consistency, but else, absent any partition, you still choose between latency and consistency. Introduced in 2010, it reframes the tradeoff as a permanent condition rather than a failure-mode question.

For a payment platform, that means you resolve the tradeoff per data type. Ledger writes accept latency for consistency. Balance displays accept staleness for speed. Fighting this per-endpoint is the actual design work, and treating it as a single global setting is how platforms end up slow and inconsistent at the same time.

Distance increases transaction latency

Distance slows critical writes because cross-region consensus requires a round trip to a quorum of replicas, and light doesn't negotiate. Every synchronous hop in your authorization path adds its geographic latency to the customer's wait.

Spanner illustrates the floor. Its commit-wait mechanism introduces latency proportional to TrueTime uncertainty, typically 4 to 14 milliseconds per commit, before you count network distance to witness replicas. Wayfair's benchmarking found its worst multi-region configuration ran up to 15 times the latency of comparable on-premise SQL Server timings.

That's the argument for keeping authorization synchronous only where it must be. Fraud scoring and settlement instructions belong on the asynchronous side of the boundary, because each one you move off the critical path removes its latency from every transaction. Count the synchronous hops in your authorization flow. If there are more than three, you have work to do.

Financial records demand stronger consistency

Balances and ledger entries require strong consistency, full stop. Everything downstream of them can be eventual. That line is the single most useful boundary you'll draw in a payment architecture, because it tells you exactly where to spend your latency budget.

Double-entry accounting is what enforces correctness on the strong side. Modern Treasury built its Ledgers product on double-entry, auditability, and immutability. Once a ledger transaction posts, it becomes immutable, and corrections happen through new reversing entries rather than edits.

Immutability does more than satisfy auditors. It makes your ledger safe to replicate and safe to replay, because an append-only log has no update conflicts to resolve across regions. Notifications and reporting sit on the other side of the line, where a few seconds of replica lag costs nobody anything and buys you substantial read capacity.

Failover can duplicate transactions

Failover duplicates transactions because a request that timed out is indistinguishable from a request that failed. The client retries after the original write had actually succeeded, and the customer gets charged twice. Idempotency keys close that gap.

Stripe's implementation is the pattern worth copying. It accepts a unique value in an Idempotency-Key header on mutating endpoints, and returns the original response for any duplicate request carrying the same key within 24 hours rather than creating a second charge.

The trap is generating the key at the wrong layer. A Stripe issue documented in the stripe/ai repository describes exactly this: the software development kit generates keys correctly for network retries inside a session, but an orchestration layer retrying the whole call starts a new session with a new auto-generated key, and a second charge gets created. Derive the key deterministically from the business event and store it durably before the call.

Proven patterns preserve payment correctness

The patterns that keep payments correct at scale are well established and worth naming precisely, because each one solves a specific failure mode rather than offering general robustness.

Together they form the correctness layer that sits underneath everything discussed so far:

• Double-entry ledgers, where every transaction writes a debit and a credit that sum to zero. The invariant is self-checking, which means a cent lost anywhere shows up as an imbalance you can detect automatically rather than discover in a customer complaint.

• Immutable event logs that record what happened rather than what the current state is, which give you replay capability and an audit trail that survives regional divergence.

• Multi-acquirer processor routing, which removes your provider as a single point of failure. Cardflo's business continuity documentation puts the authorization uplift at 2% to 5% when merchants move from a single provider to multi-acquirer failover.

End-to-end tracing ties them together. Without a trace identifier on every financial event, a duplicate charge in a distributed system is a forensics project rather than a query, and your reconciliation team pays that cost every single day.

Testing must simulate failures and peaks

Testing has to reproduce both the peak and the failure, because those are the two conditions where payment architectures break and neither shows up in a normal load test. Run load tests to your projected peak and chaos experiments that kill real dependencies.

Define the targets first. A practical progression for a payment platform runs baseline, then incremental multipliers. One documented AWS approach for a 10x Black Friday spike ramped from 500 transactions per second through incremental multipliers to a 4-hour soak at 5,000 TPS. The test measured p99 response time at each step.

Two scenarios most teams skip:

1. Reconciliation drills, where you deliberately create a mismatch between your ledger and a settlement file and time how long resolution takes.

2. Degraded provider scenarios, where a processor responds slowly rather than failing cleanly, which is the case circuit breakers get wrong.

A recovery plan you've never executed is a hypothesis. Chaos experiments turn it into evidence, which is exactly what DORA Articles 24 and 25 ask you to produce.
