ISO 8583 Development: Engineering Reliable Card Payment Messaging Systems

What ISO 8583 is and why it still matters

ISO 8583 development sits at the foundation of nearly every card payment in the world. The standard defines the message format for exchange among acquirers and issuers, with schemes routing authorization and clearing traffic alongside administrative messages. It is decades old, yet it carries the traffic when you tap a card at a coffee shop or pull cash from an ATM in another country.

The International Organization for Standardization first published the format in 1987, titled "Bank card originated messages — Interchange message specifications." Two further revisions followed, ISO 8583:1993 and ISO 8583:2003, each adding data elements and refining definitions. The 1987 edition is still the version most widely deployed by Visa and Mastercard, even though newer revisions exist on paper.

Dialects are where things get interesting. Visa and Mastercard each took the base specification and extended it with private data elements and custom encodings, with separate connectivity rules of their own. As PXP notes, this means ISO 8583 implementations "are not universally interoperable despite following the same underlying standard." That is the engineering challenge in ISO 8583 development in plain terms. Your system must speak multiple closely related languages, each with its own quirks, and stay online at thousands of messages per second.

Anatomy of an ISO 8583 message

An ISO 8583 message is a compact, position-driven structure. For ISO 8583 message processing, every message starts with the Message Type Indicator (MTI), then uses bitmaps to announce the data elements that follow. There is no XML or JSON on the wire, and field names are absent too. The position of a bit in the bitmap tells you which data element follows.

This compactness is part of why the standard has survived. As the World Bank's messaging standards report points out, ISO 8583 "is smaller than other messaging standards," which matters in environments where bandwidth and CPU are constrained, with storage limits treated as part of the same operating budget. For ISO 8583 development, the trade-off is that you cannot read the wire format without the specification in hand.

Message type indicator and bitmaps

The MTI is four digits. Each digit carries meaning. Per IR's protocol guide, an MTI of 0110 decomposes as: version (0 = 1987), class (1 = authorization), function (1 = response), and origin (0 = acquirer). Get this wrong and the counterparty rejects your message before it even reads the data.

After the MTI come the bitmaps. The primary bitmap occupies 8 bytes (64 bits) and signals which of data elements 1 through 64 are present. If bit 1 of the primary bitmap is set, a secondary bitmap follows and covers elements 65 through 128. The Mastercard chargeback guide describes this layout cleanly: "Primary—Positions 5–12; indicates the presence of data elements 1–64. Secondary—Positions 13–20; indicates the presence of data elements 65–128."

In ISO 8583 development, decoding a bitmap is straightforward once you have done it once. Take the hex string 7234050128C18000. Convert to binary, read left to right, and each 1 bit names a present field. A bit at position 2 means DE 2 (PAN) is in the message. A bit at position 3 means DE 3 (processing code) follows it. The parser walks the bitmap, then pulls each named field in numeric order.

Key data elements in card transaction messaging

A handful of fields show up in almost every card transaction messaging flow. In card transaction messaging, they tie the lifecycle together from terminal swipe to settlement file.

• DE 2, Primary Account Number (PAN): the card number itself, variable length up to 19 digits.

• DE 3, Processing Code: a 6-digit code that tells the issuer what kind of transaction this is (purchase, cash advance, refund, balance inquiry).

• DE 4, Amount, Transaction: a 12-digit fixed field carrying the amount in minor units.

• DE 11, System Trace Audit Number (STAN): a 6-digit number the originator uses to correlate request and response.

• DE 37, Retrieval Reference Number (RRN): a 12-character identifier that persists across the transaction lifecycle and into clearing.

• DE 39, Response Code: the 2 or 3 character outcome (00 = approved, 05 = do not honor, 91 = issuer unavailable).

Field length and padding are where teams new to ISO 8583 development burn weeks. DE 4 is 12 digits regardless of currency, so $10.00 becomes 000000001000 in a USD context. DE 2 is variable with an LL prefix, so a 16-digit PAN is encoded as 1641111111111111111. In ISO 8583 message processing, a prefix length that is wrong by one byte shifts the rest of the message and makes the receiver throw a format error.

Encoding formats and field representations

In ISO 8583 development, the specification permits binary, Binary Coded Decimal (BCD), ASCII, and EBCDIC encodings, and real implementations mix them. BCD packs two digits into one byte, which is how you fit a 16-digit PAN into 8 bytes. ASCII is human-readable on the wire. EBCDIC still appears in older mainframe-connected acquirers.

Variable-length fields carry a length prefix. LL means a 2-digit length, LLL means a 3-digit length. So an LLVAR field with content "HELLO" appears as 05HELLO in ASCII, or as the BCD bytes 05 followed by the ASCII content. Scheme specs override the base standard on which encoding applies to which field, so the same DE 48 can be BCD on one network and ASCII on another.

A parser that survives in production reads the encoding rules from configuration rather than hardcoding them. Kyle Redelinghuys, who implemented dual protocol support at BVNK, put the point bluntly: "Most developers never touch these standards directly — they're hidden behind payment processors and banking APIs. But when you're building the infrastructure itself, you get to see how the sausage is really made." Build the parser as a table-driven engine and the same code handles Visa, Mastercard, and a domestic switch with only configuration changes.

Core transaction flows

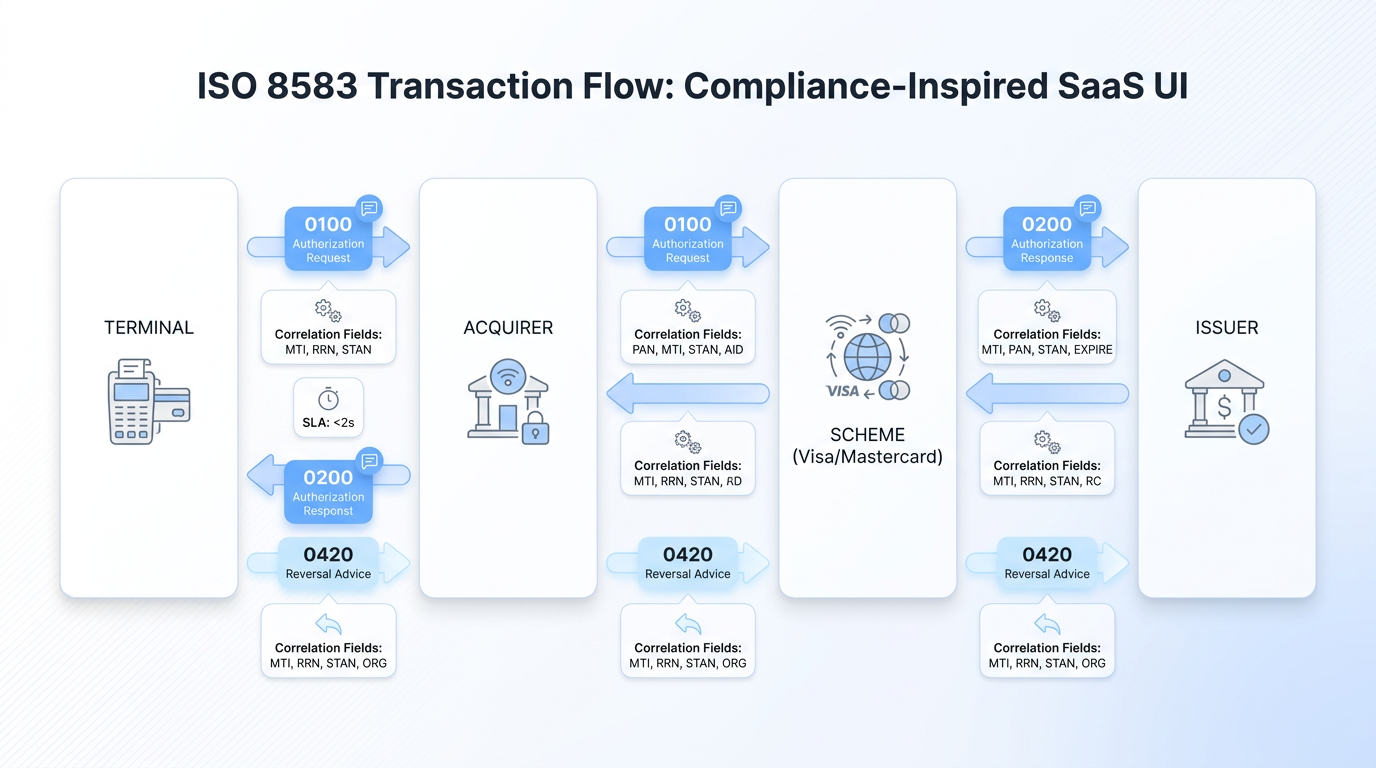

Every ISO 8583 card transaction messaging system supports a small set of flows, and each one is a request and response pair tied together by correlation fields. STAN correlates within a session. RRN correlates across the broader lifecycle and into clearing. Acquirer references tie the whole chain back to the merchant.

The message types are organized by class. The 01xx range is authorization, 02xx is financial (single-message clearing), 04xx is reversal, 08xx is network management, and so on. Each class has its own state machine and its own failure modes. A reliable design anticipates the failures, because the happy path is the easy part.

Authorization and authentication

The authorization pair is 0100 (request) and 0110 (response). The terminal builds the 0100, the acquirer routes it to the scheme, the scheme routes it to the issuer, and the response travels back. Cardholder verification data rides in specific fields. Online PIN goes in DE 52. CVV results come back in scheme-specific subfields. 3-D Secure data lives in DE 48 private subelements, where, according to Worldpay's reference guide, tags such as "07 (3D Secure Program Protocol) and 08 (3D Secure Directory Server Transaction ID)" carry the authentication outcome.

Latency is brutal. Mastercard's network completes the round trip from tap to issuer decision in "less than 300 milliseconds" on a typical authorization. If the issuer doesn't respond within the scheme's window, the scheme falls back to stand-in processing (STIP), where Visa or Mastercard answers on the issuer's behalf using cached risk rules. Visa's Smarter STIP whitepaper describes how this requires "high throughput and low latency" to be useful at all. In ISO 8583 development, the acquirer's job is to use sane timeouts so the STIP response can be accepted as authoritative until later reconciliation if the issuer's real answer differs.

Reversals and chargebacks

Reversals use the 04xx range. A 0400 is the reversal request, 0410 is the response. The 0420 advice is used when the originator has already decided the reversal happened and just needs the counterparty to record it. Reversals commonly cover merchant voids before settlement and final amounts below the authorization. They also cover terminal timeouts that leave the originator without an authorization response.

In ISO 8583 message processing, reversals must be idempotent. The same 0400 with the same STAN and RRN sent five times must result in one logical reversal. The retry side is non-negotiable as well. Visa's Authorization and Reversal Processing guide states that the "entire authorized amount must be reversed within 24 hours of when the merchant becomes aware that that transaction would not be completed." If the first attempt fails because the network is down, you keep retrying with backoff until you get an acknowledgement. Drop a reversal and the cardholder has a phantom hold on their account, which becomes a customer service problem and eventually a regulatory one.

Chargebacks also use the 04xx family in some scheme dialects. Mastercard's clearing flow uses MTI 1442 for chargebacks in the IPM format, as documented in the same Mastercard guide. The chargeback links back to the original presentment through the RRN and additional reference fields, and the lifecycle can run through second presentments and pre-arbitration, with arbitration before a final decision.

Clearing and settlement

In ISO 8583 development, clearing is where the money actually moves. The online 0200 financial message and 0220 advice cover single-message networks. Dual-message networks pair an online authorization with a separate batch clearing file delivered later. Visa's BASE II handles "clearing (detailed posting of transactions) and settlement (movement of funds between issuer and acquirer)" through batch files sent through VCSS. Mastercard's Global Clearing Management System uses Integrated Product Message (IPM) files delivered over the Mastercard Interface Processor (MIP).

The timing matters. Authorization holds reserve funds, and they expire if no clearing presentment arrives within the window the scheme enforces. Visa's rules give merchants between 10 and 30 days to convert an estimated authorization to a presentment. The window depends on merchant category. Miss the window and the merchant has to chase reauthorization after the hold drops, while the cardholder sees confusing pending entries on their statement.

Reconciliation closes the loop. The acquirer compares its own transaction log against the scheme's settlement report and resolves any breaks. This is where ISO 8583 message processing meets accounting, and where missing or duplicate RRNs turn into days of investigation.

Scheme integration with Visa and Mastercard

Visa and Mastercard both speak ISO 8583, and both speak it differently. Visa's online authorization runs through VisaNet's Single Message System (SMS) and BASE I. Mastercard's online authorization runs through its Authorization Platform, with clearing handled by GCMS over IPM as described in the GCMS Reference Manual: "Every message must contain the message type identifier (MTI) in positions 1-4, followed by both bit maps in positions 5-20, followed by the International Organization for Standardization (ISO)-defined data elements (DE 1-DE 128) in ascending sequence."

In ISO 8583 development, private data elements are where the dialects diverge. Visa uses field 62 for private data with its own subfield catalog. Mastercard uses Private Data Subelements (PDS) inside DE 48 and DE 124. The 3-D Secure cryptogram lives in different subtags. The merchant category code is mandatory on both, but the rules around when to include addendum data differ. None of this is hard once you have read the spec. The hard part is keeping two parallel implementations in sync as both schemes publish quarterly mandates.

Connectivity adds another layer. Mastercard requires connection through a MIP appliance, with Transport Layer Security enhancements rolling out in 2025. Visa terminates connections at its endpoints over leased lines or IPsec tunnels. Both demand a documented disaster recovery posture before they let you go live. Certification is a separate project of its own, and we'll return to it.

Error handling and resilience in ISO 8583 development

Production-grade ISO 8583 development is mostly about what happens when things go wrong. The happy-path code is a few hundred lines. The error-handling code is the rest of the system. In ISO 8583 message processing, response codes in DE 39 are the first signal. 00 is approved. 05 is do not honor. 91 means the issuer was unreachable. 96 is a system malfunction. Each code triggers different behavior on your side, and the rules differ by scheme. A 91 from a Visa authorization is a candidate for retry through STIP. A 96 means something is broken and retries make it worse.

Network management messages in the 08xx range keep the link healthy. The 0800 is a network management request, 0810 the response. These carry echo tests, sign-on, sign-off, key change, and cutover messages. A typical production switch sends an echo test every 30 to 60 seconds on each persistent connection. If three consecutive echoes fail, you mark the link down and fail traffic over to a backup while the on-call gets paged.

The rules for handling malformed input are equally important:

1. Validate the MTI and bitmap before reading any data element. A bad bitmap means everything that follows is suspect.

2. Reject messages with response code 30 (format error) when the wire format is unparseable, rather than guessing.

3. Deduplicate inbound by STAN and RRN within a defined window, because schemes will resend on their own retry logic.

4. Persist every reversal intent before sending it, so a crash mid-send doesn't lose the obligation.

In ISO 8583 development, idempotency is the deepest of these requirements. Two 0100 messages with matching STAN and RRN, plus the same PAN within a short window, are almost certainly the same transaction retried. Your switch needs to recognize that and return the cached response rather than charging the cardholder twice. The same logic applies to reversals in reverse: a duplicate 0400 must result in one logical reversal credit.

Performance and scalability considerations

In ISO 8583 development, the performance budget for an authorization is unforgiving. End-to-end, the cardholder expects a response in under two seconds. Within that envelope, the scheme and issuer use their shares, while your acquiring switch has roughly 100 to 200 milliseconds to do its work. Visa's network alone routes authorizations to the issuer in around 150 milliseconds, and the rest of the budget is consumed by everything outside Visa.

In ISO 8583 message processing, volume compounds the pressure. Mastercard handles "surges of 70,000 transactions a second" during peak periods like the December holiday rush, and Visa's network averages around 8,500 TPS with peaks above 65,000 TPS. Your share of that traffic is a few hundred TPS on a normal day and ten times that on Black Friday. The system has to handle the peak without graceful degradation that affects approval rates.

A few architectural decisions separate switches that scale from switches that crumble:

• Persistent TCP connections to schemes, with connection pooling on the application side. Reopening sockets per transaction is unworkable at production volume.

• STAN-based multiplexing on each connection, where many in-flight requests share one socket and STAN correlates each response to its caller.

• An asynchronous internal model with synchronous external semantics, so internal queue depth absorbs spikes without blocking the network thread.

Observability is the other half. Every message needs structured logging so you can reconstruct a transaction after the fact, but the logs cannot contain raw PANs. PCI DSS Requirement 3.3 requires that you "Mask PAN when displayed (the first six and last four digits are the maximum number of digits you may display)." Requirement 3.4 extends this to logs and backups. The practical answer is to tokenize the PAN at ingress and log only the token plus the first six and last four digits. Structured logs of card transaction messaging that don't respect this rule turn into compliance findings the first time an auditor opens them.

Testing, certification, and going live

Nothing about ISO 8583 development goes live without certification, and certification is its own discipline. The path runs from unit tests against a simulator, to scheme test environments, to a pilot, to general availability.

In ISO 8583 development, simulators come first. Open-source options like jPOS and commercial simulators from vendors let you replay scripted message flows and verify that your parser and builder behave as expected, with the state machine covered by the same scripts. This is where you catch off-by-one bit errors and field length mismatches before they cost you scheme test cycles.

Then comes scheme certification. Visa's Test System and Mastercard's Customer Test Facility run hundreds of scripted scenarios across authorization, reversal, partial approval, currency conversion, and exception handling. Each script has expected response codes and field contents. Miss one and you re-run the entire suite after the fix. Plan for several weeks of test cycles even on a clean implementation.

Production rollout is staged. A pilot with a small slice of traffic, either a single BIN range or a single merchant, runs for a defined period while you watch error rates and latency. Only after the pilot is clean do you ramp to full volume. Shortcuts in this sequence surface later as outages, and outages in card transaction messaging are visible to cardholders, merchants, regulators, and the press.

Wrapping up

ISO 8583 systems outlive the teams that build them. The version of the standard most widely used today was published in 1987, and the switches running it have been patched and extended as they moved across hardware generations without ever being rewritten. Whatever you ship will be in production longer than you expect, and the engineers maintaining it will not have access to the context you carried in your head.

That reality shapes the design. Field-level abstractions that name fields clearly, parsers that are configuration-driven rather than hardcoded, logs that capture every state transition, and reversal logic that is correct under every retry scenario are the investments that pay off over a decade. The protocol is a contract with the wider payments ecosystem.

EGS builds resilient fintech infrastructure for institutions that run card transaction messaging at production scale, and our team works on ISO 8583 message processing and scheme certification, with high-throughput switch architecture part of the same work every day. If you're planning a new ISO 8583 development project or migrating off a legacy switch, reach out to our engineering team for a working session on your architecture; the same session can cover hardening an existing integration before peak season.
