Cloud HSM Migration: Modernizing Payment Security Without Breaking Compliance

Why banks are rethinking on-prem HSMs

The payment HSM estate inside most banks was built for a different decade. Appliances bought in 2014 are reaching end-of-life, and the cost of support contracts plus a tamper-resistant room with two-person controls and 24/7 staffing keeps climbing. Cloud HSM migration has become a serious agenda item because the alternative is another seven-year hardware refresh at a moment when payment volumes are anything but predictable. Volume is the second pressure point. Card authorisation traffic spikes around Black Friday and salary days, and on-prem capacity has to be sized for the worst case all year. Elastic cloud HSM capacity sounds attractive when 80% of your appliance sits idle most weeks.

Then there's the regulatory backdrop. In the EU, PSD2's Strong Customer Authentication requirement (in force since 14 September 2019) and the Digital Operational Resilience Act (DORA) both put cryptographic key management under closer scrutiny. African regulators take a similar line: the South African Reserve Bank's Prudential Authority issued Guidance Note 5 of 2018 on cloud computing and data offshoring, and the Central Bank of Nigeria's Risk-Based Cybersecurity Framework came into force on 1 July 2024. These rules force banks to prove that resilience matches on-prem standards and that custody controls are auditable. The tension is real. Finance teams want capex off the books and ops teams want fewer 3am alerts, but the second line of defence reads every cloud HSM migration plan with a red pen.

On-prem vs cloud HSM compared

Before picking a target cloud HSM architecture, it helps to put the two models side by side on the dimensions that decide payments outcomes. Headline pricing pages don't tell the whole story, and neither do vendor data sheets.

Cost and operational overhead

On-prem appliances from Thales and Utimaco have an unforgiving capex profile. A payShield 10K pair with HA licensing and a tamper-monitored room runs into six figures before the first transaction. A cloud HSM migration sidesteps that. AWS CloudHSM is billed at around $1.45 per hour per HSM instance, and AWS recommends a minimum of two HSMs across availability zones, which comes to roughly $2,117 per month before any cryptographic operations. Azure Dedicated HSM sits in a similar band, and hourly rates of $1.45 to $1.88 vary by region.

The crossover point matters. AxelSpire's analysis puts a cloud HSM HA deployment across two regions at roughly $60,000 to $130,000 per year once network connectivity and data transfer are included, and on-prem becomes cheaper past a five-year horizon. What executives miss in the on-prem total cost is the hardware refresh at year seven to ten, which AxelSpire pegs at over $100,000, plus emergency replacement outside warranty in the $20,000 to $50,000 range.

Hidden costs of on-prem are mostly people. A short list of what doesn't show up on the capex line:

• Physical security staffing and dual-control procedures

• Firmware patching windows and the change advisory paperwork around them

• Key custodian rotation and training for ceremonies

• HVAC and UPS support for tamper-event response drills

At high transaction volumes, the cloud model flips. Per-key pricing and data egress add up, and a bank doing billions of authorisations a year can find that dedicated on-prem hardware is cheaper per operation.

Latency in authorisation flows

In card authorisation, every millisecond between the issuer host and the HSM is a millisecond closer to a scheme timeout. On-prem HSMs sitting on the same VLAN as the authorisation switch routinely return PIN translations in well under a millisecond. Cloud HSMs add VPC routing through ENI traversal and sometimes a cross-AZ hop. Real-world numbers are in the low single-digit milliseconds when the workload is co-located in the same region, and much worse when it isn't.

That constrains where a cloud HSM architecture can replace on-prem. PIN translation and 3DS cryptograms on the issuer side are sensitive to this. TLS offload for an internet-facing portal, by contrast, doesn't care about another two milliseconds.

Compliance and key custody

Both AWS CloudHSM and Azure Dedicated HSM use hardware validated at FIPS 140-2 Level 3, which is the same bar most on-prem payment appliances meet. Azure Payment HSM is the more specialised offering. It runs on Thales payShield 10K HSMs that are FIPS 140-2 Level 3 and PCI HSM v3 certified, and the underlying datacentres carry PCI DSS and PCI PIN attestation. Azure Dedicated HSM, by contrast, runs Thales Luna 7 appliances and does not support payment-specific functions like PIN or EFT.

Key custody is where auditors push hardest. The master key in a cloud HSM is generated inside the device and never leaves it in plaintext, which is the same model as on-prem, but the ceremony looks different. Custodians attend remotely or fly to a cloud provider's secure room, and the chain-of-custody documentation has to be tighter because the physical room belongs to someone else. EU data residency rules under GDPR mean the HSM region selection isn't a free choice. African central bank guidance, particularly SARB's, pushes clearing and settlement keys to stay onshore.

Hybrid cryptographic infrastructure as a middle path

A full cloud HSM migration cutover rarely makes sense for a bank with deep on-prem investment and live regulatory commitments. A hybrid cryptographic infrastructure splits the estate by sensitivity. Payment-sensitive keys stay on-prem where latency and custody rules are easiest to defend. Lower-sensitivity workloads move to the cloud, where elasticity actually pays off. Good candidates for the cloud side of a hybrid cryptographic infrastructure include tokenisation services, TLS offload for customer-facing channels, document and code signing, and internal PKI. None of these sit inside the authorisation hot path, so cloud HSM latency doesn't hurt them. They also scale unpredictably, which is exactly where hourly-billed cloud HSM capacity earns its keep.

The operational complexity comes from running two control planes. Key synchronisation between on-prem and cloud must be one-way where possible, with clear ownership for each key class. Audit trails have to be merged across environments because regulators will ask for a single view, and IAM in the cloud has to map cleanly onto the role separation already documented on-prem.

Two patterns show up repeatedly:

• Burst capacity, where cloud HSMs handle peak TLS or tokenisation traffic and the on-prem fleet sees a flatter load

• Disaster recovery in the cloud, where a warm standby cloud HSM cluster takes over if the primary on-prem site goes dark

A hybrid cryptographic infrastructure also gives the second line of defence a way to say yes. The risk team gets to keep the keys that worry them most under physical control while the rest of the bank gets cloud benefits. That's a more durable answer than "all in."

Regulatory constraints in EU and African markets

The rules differ by jurisdiction, and cloud HSM migration plans have to account for each one a bank operates under. In the EU, the European Banking Authority guidelines on outsourcing arrangements apply to any cloud HSM contract, and DORA layers on top.

DORA's Article 28 on ICT third-party risk requires financial institutions to ensure their cloud providers meet DORA standards, with the Lead Overseer empowered to oversee designated critical ICT providers directly. The cryptographic side is covered separately. RTS Article 7 on key management expects a documented policy covering generation, storage, backup, rotation, and revocation, with keys protected in hardware such as HSMs. GDPR adds the data residency angle because key material derived from personal data can itself be in scope.

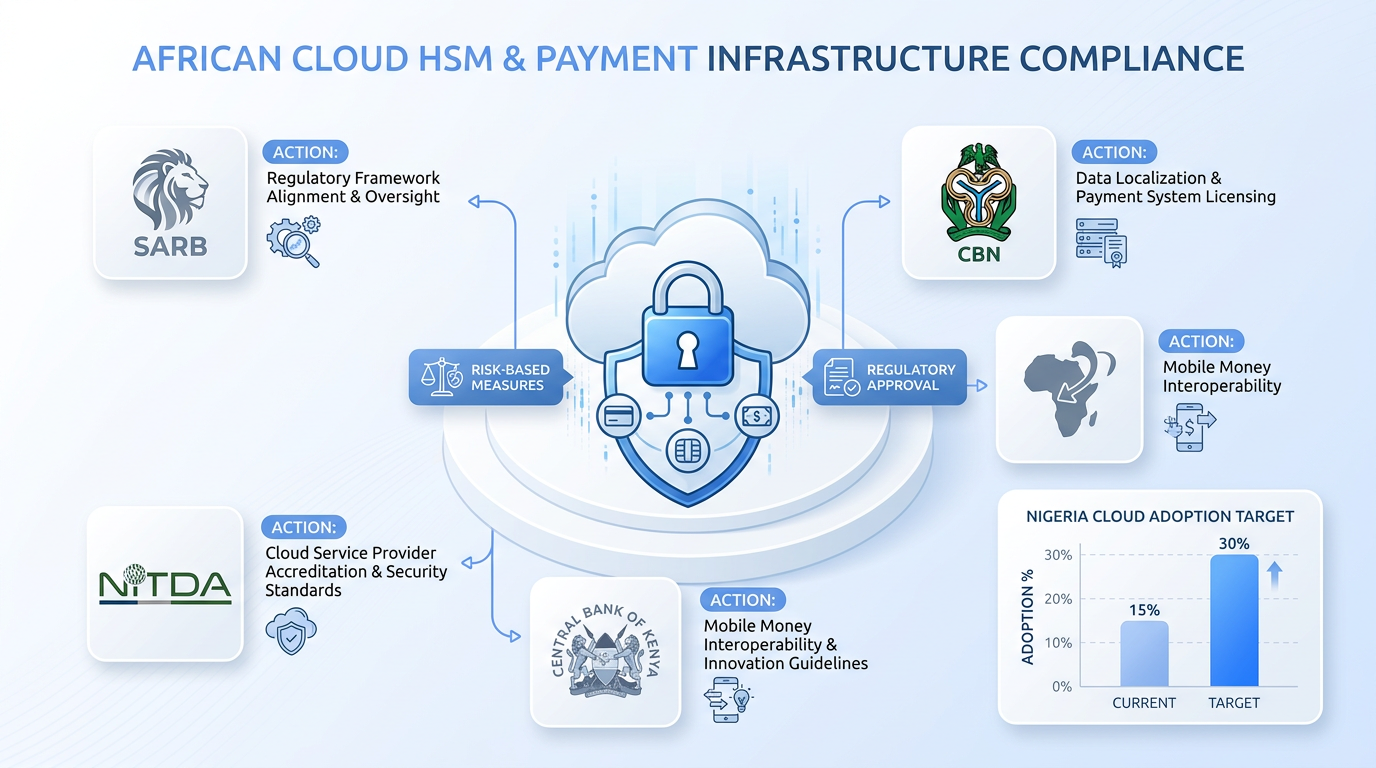

African Regulatory Approaches to Cloud HSM and Payment Infrastructure

African markets are more varied. The South African Reserve Bank's March 2025 consultation paper on cloud computing and offshoring proposed that clearing and settlement data and systems for payment system FMIs must be processed and stored within South Africa's borders, with adoption of cloud computing for payment FMIs limited to onshore cloud services. Nigeria's CBN takes a risk-based stance through its 2024 cybersecurity framework, while the Nigeria Cloud Computing Policy issued by NITDA targets a 30% increase in cloud adoption by 2024 among federal public institutions and SMEs. Kenya's Data Protection Act covers personal data crossing borders, which catches key material in some interpretations.

Several regulators reserve the right to refuse specific cloud HSM arrangements for payment workloads. SARB requires payment institutions to obtain approval prior to cloud utilisation and data offshoring. That makes early regulator engagement non-optional.

Cloud HSM migration steps

A workable cloud HSM migration is iterative. Banks that try a single cloud HSM migration cutover almost always pause halfway and fall back, because key ceremonies and audit evidence can't be compressed. The phases below define entry and exit criteria so each step is reviewable on its own.

Cloud HSM architecture and discovery

Start with a workload inventory that goes beyond the obvious. The authorisation switch and the issuance system are easy to find. Forgotten batch jobs that decrypt a nightly settlement file and an ageing POS reconciliation tool need to be on the list. The same goes for any document-signing service buried in legal. Each entry maps to a target cloud HSM architecture: stays on-prem, moves to cloud HSM, moves to a managed key service, or gets retired.

Produce two artefacts before touching production. The first is a key inventory with owner, class, rotation schedule, and current location. The second is a dependency graph showing which applications call which keys and which scheme or regulator obligations attach. If the dependency graph has gaps, the cloud HSM migration plan isn't ready.

Pilot with non-critical workloads

The pilot should move things that don't appear on a scheme report. Internal TLS termination and code signing for build pipelines are good starters. Run them in parallel with existing on-prem HSMs for at least one full audit cycle so you can compare behaviour under load and during failure scenarios.

This phase is where operations staff learn the cloud HSM console and the IAM model. Runbooks written in this phase will save the team during the production cutover. Don't skip the chaos exercises. Pull an HSM or a region and watch what your monitoring tells you.

Key ceremony and migration

Formal key ceremonies in the cloud follow the same script as on-prem, with custodians and an auditor present. The choice is between migrating existing keys (where the source HSM supports secure export under a transport key) and generating fresh keys in the cloud HSM with re-encryption of dependent data. Fresh keys are cleaner from an audit perspective but mean a re-encryption project for stored ciphertext.

Document every step. Regulators reviewing a Cloud HSM migration after the fact will ask for the ceremony script, the attendance log, the M-of-N quorum used, and the hash of every key check value generated. If it isn't in the record, it didn't happen.

Cutover and decommissioning

Production cutover should be gradual. Feature flags or weighted routing first send 1% of authorisation traffic to the cloud HSM, with later steps at 10% and 50% and rollback gates at each step. Watch authorisation latency, decline rates, HSM utilisation, and any change in scheme acknowledgement times.

On-prem HSMs stay racked and powered for a defined stability window after 100% traffic is in the cloud. Sixty to ninety days is a reasonable range. Only after that window, with clean audit evidence, do the on-prem devices get zeroised and decommissioned. Decommissioning paperwork is itself a regulator interest point.

Risks and rollback strategies

Every cloud HSM migration carries a short list of failure modes that need a rehearsed answer. Theoretical rollback plans don't survive contact with a Saturday-night incident.

Key loss is the most consequential. If a key in the cloud HSM becomes unreadable through operator error or a provider outage, and there is no escrow, dependent ciphertext is gone. Mitigations keep on-prem HSMs warm with the original keys during the stability window and preserve secure offline backups under M-of-N control; the last copy of historical data is never re-encrypted until the new key has been independently verified.

Latency spikes show up when a workload turns out to be more sensitive than the pilot suggested. The rollback path is the feature flag from the cutover phase. Region outages are rarer but documented. AWS and Azure both publish post-incident reports, and a cloud HSM architecture with cross-region failover should be tested before it is relied on. IAM misconfiguration is the quiet killer because over-permissive roles can pass an audit and still expose key operations to the wrong principals. Use AWS CloudWatch Logs for CloudHSM activity, which AWS routes outside of CloudTrail, and treat any deviation as a security event.

Migration Risks, Failover Planning, and Rollback Strategy for Cloud HSM Deployments

Audit findings mid-migration are the political risk. If an internal auditor or regulator flags a gap halfway through, the right move is to pause new phases while completed ones remain in place.

A short rule of thumb for when to abort versus push through:

1. Abort the current phase if the failure affects key custody or audit evidence integrity.

2. Pause and remediate if the failure is operational and rollback is clean.

3. Push through only if monitoring shows the issue is below defined error budgets and the root cause is understood.

Keep on-prem HSMs warm and licensed for the full rollback window. Yes, that costs money. It also costs less than a forensic reconstruction of a lost issuance key.

Making the call for your bank

The right answer depends on transaction volume, jurisdiction, hardware refresh timing, and how mature your cloud operations actually are. A bank doing 50 million authorisations a month in a single EU country, with appliances three years from end-of-life, has a different calculation than a pan-African issuer with a SARB licence and a Thales fleet bought last year.

A short checklist for your next cloud HSM architecture review:

• Which keys are subject to onshore custody rules, and is that documented per jurisdiction?

• What is the authorisation latency budget, and how much of it can a cloud HSM consume?

• Does the current hardware refresh cycle align with a phased Cloud HSM migration, or force a decision early?

• Is the operations team running cloud workloads at the same maturity as the on-prem estate?

• Has the regulator been engaged, and are approval timelines built into the plan?

Whichever path you choose, the workload inventory pays for itself. Even a decision to stay on-prem benefits from knowing exactly which applications touch which keys.

Wrapping up

Cloud HSM migration changes how banks manage payment security, key custody, and operational scalability. This article explained the differences between traditional on-prem HSM deployments and cloud-based HSM services from AWS and Azure, including cost structures, latency trade-offs, compliance requirements, and operational overhead.
